Basic Info

Model NO.

OPTIPOW135

Optipow Valve Structure

Pilot Membrane

Power Supply

DC Solenoid Valve

Usage

Air Dust Collector

Standard

DIN,ISO

Application

Industrial Usage

Used For

Industrial Dust Filter

Trademark

OPTIPOW

Specification

 4" Air Filter

Design static pressure

15 bar (1500 kPa)

Design temperature

-60°C-150 °C

Operating pressure

< 6 bar

Pressure variation

3 bar unlimited nos

Operation temperature

50 °C


Product Description

Optipow135 Jet Pulse Soleniod Valve

                                  ITEM

        DESCRIPTION              PART NO.
Optipow 135(24V)        Optipow 135       V1614718-0100
Optipow 135(100V,50Hz)       V1614718-0301
Optipow 135(120V,60Hz)       V1614718-0400
Optipow 135(120V 60Hz UL-CERTIFIED)       V1614718-0700
Optipow 135(without solenoid, revolving 90° C)       V1614718-0800

OPTIPOW VALVE INTRODUCTION

Optipow135 Jet Pulse Soleniod Valve for the Optipulse fabric filters of different types.Pulse Jet Filter,Pneumatic 2 way solenoid valve,Optipulse Fabric Filter,Jet Pulse Valve,Pulse Jet Collector,Jet Pulse Filter,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.

Optipow135 Jet Pulse Soleniod Valve is a result of many years of experiences within the fabric filter technology area.

Optipow135 Jet Pulse Soleniod Valve is quick acting with high efficiency.

Optipow135 Jet Pulse Soleniod Valve has small dimensions, the figure after the name stands fir the diameter of the plunger.

Optipow135 Jet Pulse Soleniod Valve is primarily designed to be used in combination with circular pressure tank.

Optipow135 Jet Pulse Soleniod Valve is easy to install and make service to.

Optipow135 Jet Pulse Soleniod Valve has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).

Normal max operating temperature (compact pulse valve) 50°C.

FABPAC Fabric Filter Pulse Jet Filter,Jet Pulse Valve,Pulse Jet Collector

FABPAC and ELPAC filters are standardized modular filters, that remove efficient Harmful particles from the flue gases. Qingdao Star Machine Technology Co.,ltd.  has delivered dozens million to  all over the world

of standardized modular electrostatic precipitators (ELPAC) and fabric filters

(FABPAC) plus hundreds of tailored and customized electrostatic precipitators

and fabric filters for power plants and industrial plants, especially for the

pulp and paper industry and the iron & steel industry.

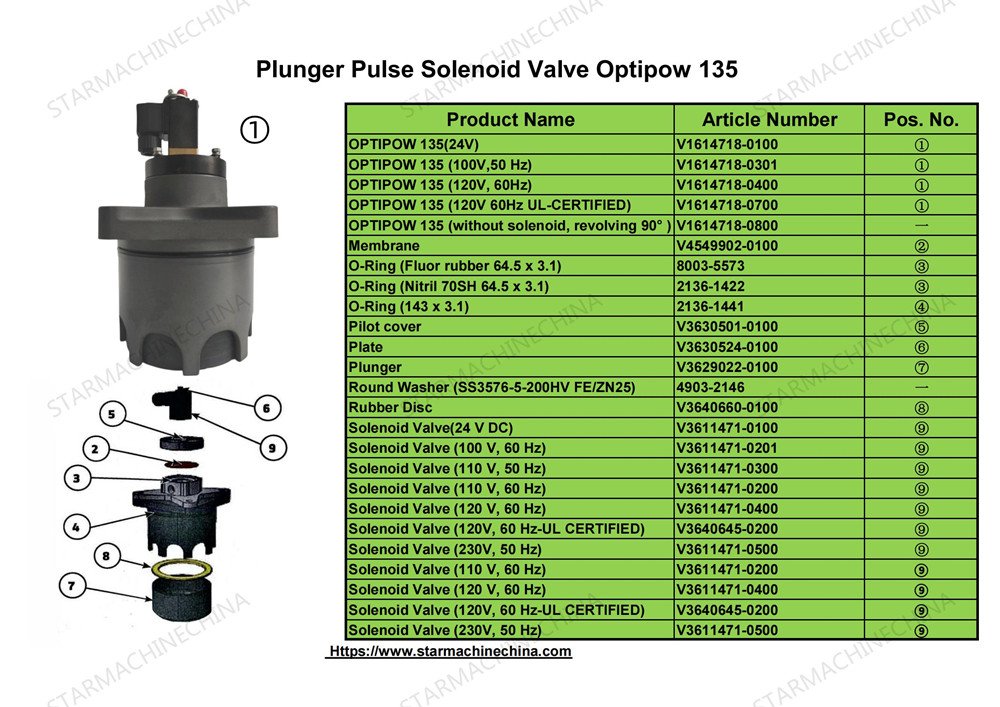

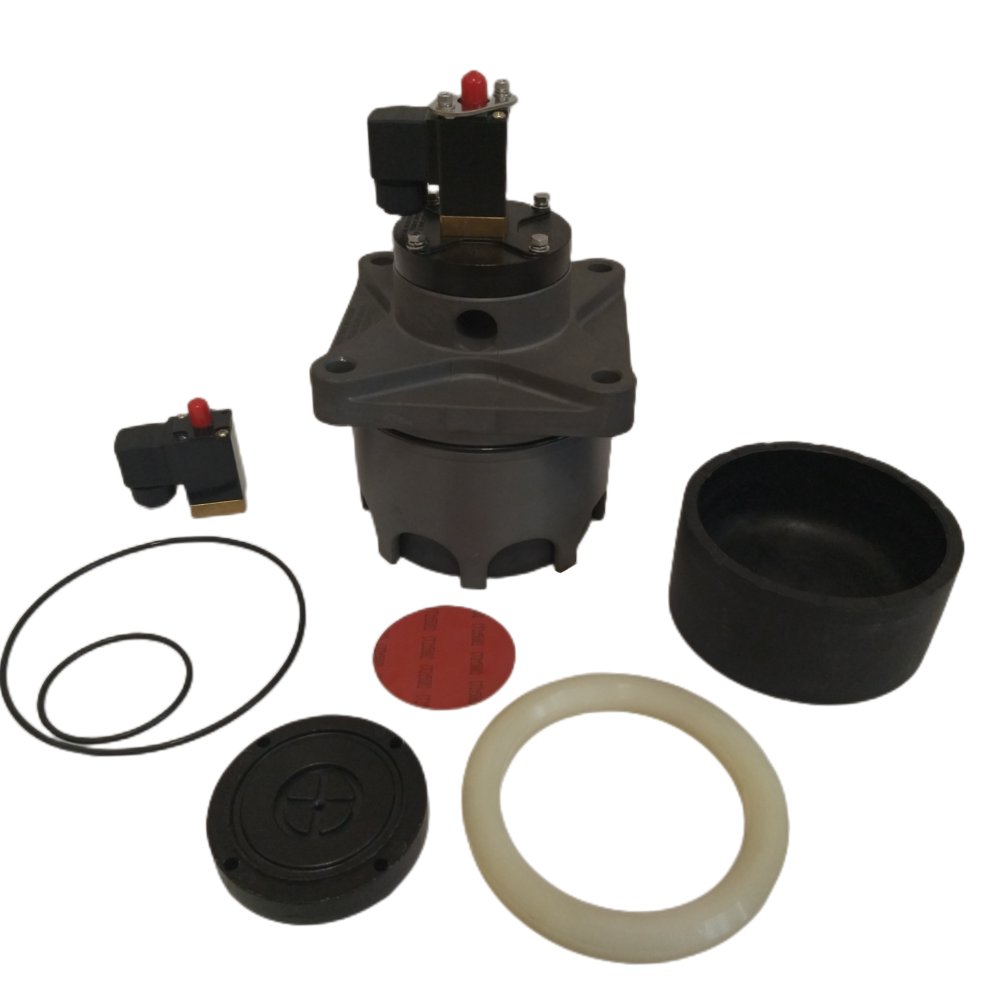

OPTIPOW SPECIFICATION AND SPARE PARTS LIST

Air Filter OPTIPOW135

OPTIPOW 135 (24V) V1614718-0100

OPTIPOW 135 (100V, 50 Hz) V1614718-0301

OPTIPOW 135 (120V 60Hz) V1614718-0400

OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800 -

Membrane V4549902-0100

O-Ring (Fluor rubber 64,5 x 3) 8003-5573

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422

O-Ring (114,5x3) 2136-1441

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3629022-0100

Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -

Rubber disc V3640660-0100

Solenoid valve (24 V DC ) V3611471-0100

Solenoid valve (100 V, 60 Hz) V3611471-0201

Solenoid valve (110 V, 50 Hz) V3611471-0300

Solenoid valve (110 V, 60 Hz) V3611471-0200

Solenoid valve (120 V, 60 Hz) V3611471-0400

Solenoid valve (120 V, 60 Hz-

We provide you with tailor-made air pollution control solutions focusing on reduced emissions and improved performance and efficiency to meet changing market conditions and comply with asset strategies. Our offering covers the entire flue gas line, ranging from particulate control, dry and wet scrubbers, to multi-pollutant equipment for industrial, waste-to-energy and power generation plants.

Starmachinechina air pollution control products meet the requirements for complying with the world’s strictest emissions legislation, the desire for low consumption of additives, the need for minimal residues, and the installation simplicity of a compact design. Quite often, our systems are delivered turnkey to ensure single-source accountability and efficiency.

Cutting-edge engineering tools and global R&D collaboration with a network of recognized partners and universities lay the foundation for our work. Early identification of each client’s needs help Starmachinechina make a long-term contribution to clean air and a clean environment.

Starmachinechina Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd. Our OPTIPOW Air Cleaning valve service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.

We have a global sales network and service system of OPTIPOW air cleaning valve. There are more than 150 distributors and business cooperative partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, efficiency, coordination, innovation" is our corporate culture. "First class quality, reasonable price and timely service" is is our company's unremitting pursuit.

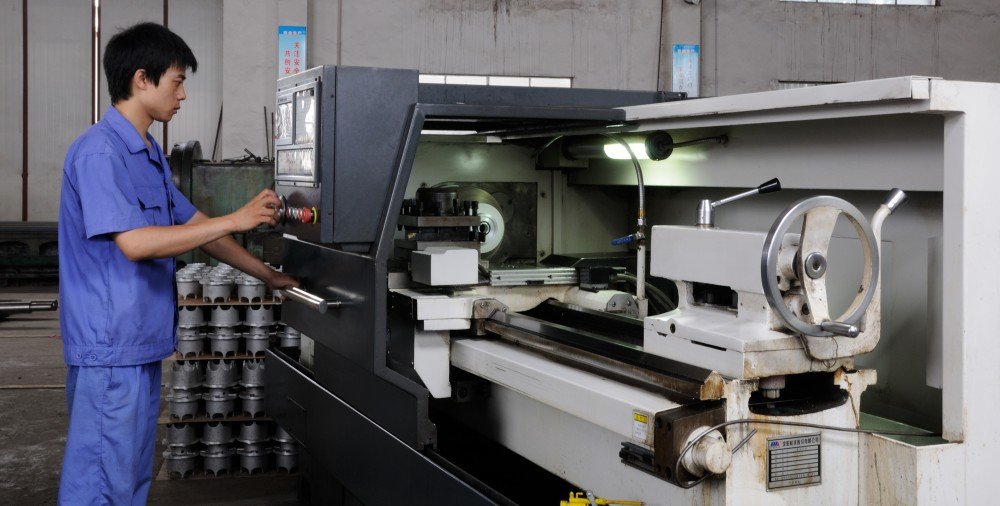

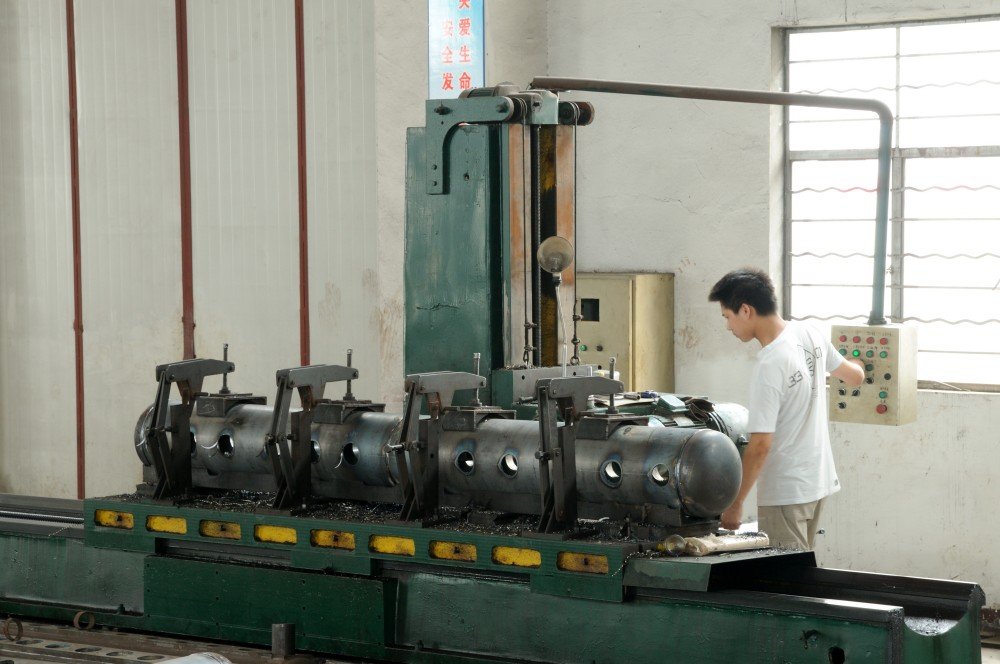

Advanced Optipow Valve Parts Processing Workshop

International Express, Air, Sea and other Delivery Methods Can Be Selected to Delivery

LET OUR INDUSTRY EXPERTS CREATE YOUR TAILORED SOLUTION

Working with Qingdao Star Machine Technology Co.,ltd. for dust collection needs is as easy as requesting a quote. Once in touch with our sales team, our dedicated representative will work with you from start to finish, gain a deep understanding of your needs, and provide the best solutions to the problems you face. Qingdao Star Machine Technology Co.,ltd. will not waste your time. We respect your position in the market and provide honest, up-front information that saves you time, cost, and peace of mind.

Qingdao Star Machine Technology Co.,Ltd. are here to make sure that you get the best experience possible while we provide solutions for your industrial dust collection needs. That’s what makes us the best dust collector manufacturer in the world. We actually care about your success. Whether you need dust collector filter bags, valves, or a whole new system, we have you covered. Contact us today to start a conversation.
