Optipow 105 Diaphragm Valves 3 inches Aluminum Pulse Soleniod Valve

OPTIPOW VALVE INTRODUCTION

Pulse valve for dust collector, Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse Valve,Pulse Jet Collector,Jet Pulse Filter,Pulse Jet Valve,Directly from China Manufacturer

The compact pulse valve for the Optipulse fabric filters of different types.Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.

is a result of many years of experiences within the fabric filter technology area.

is quick acting with high efficiency.

has small dimensions, the figure after the name stands fir the diameter of the plunger.

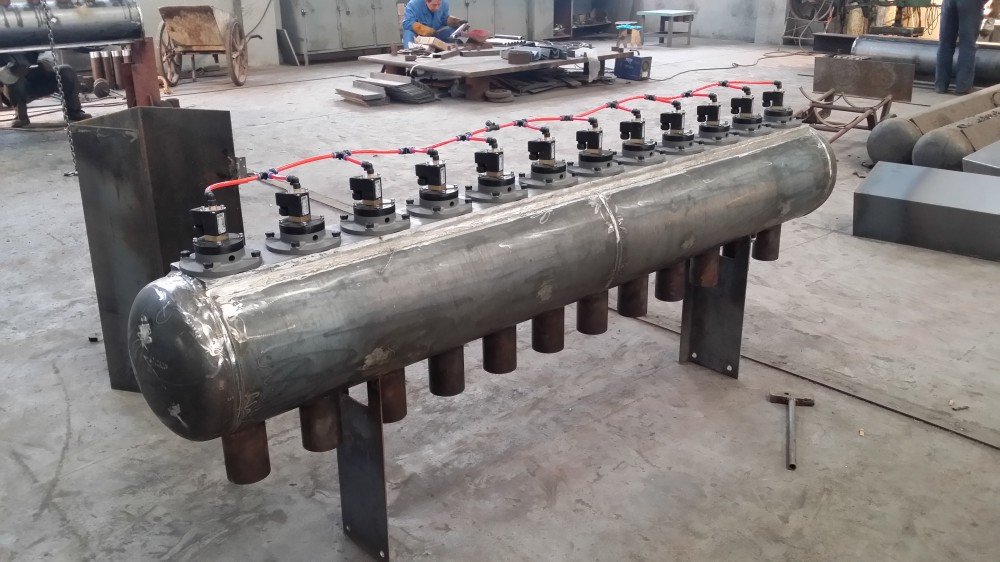

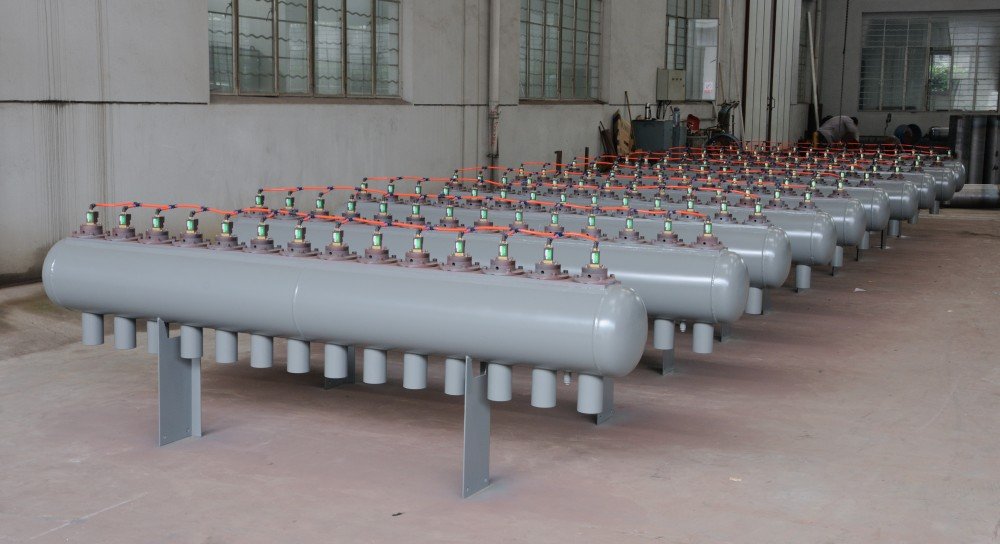

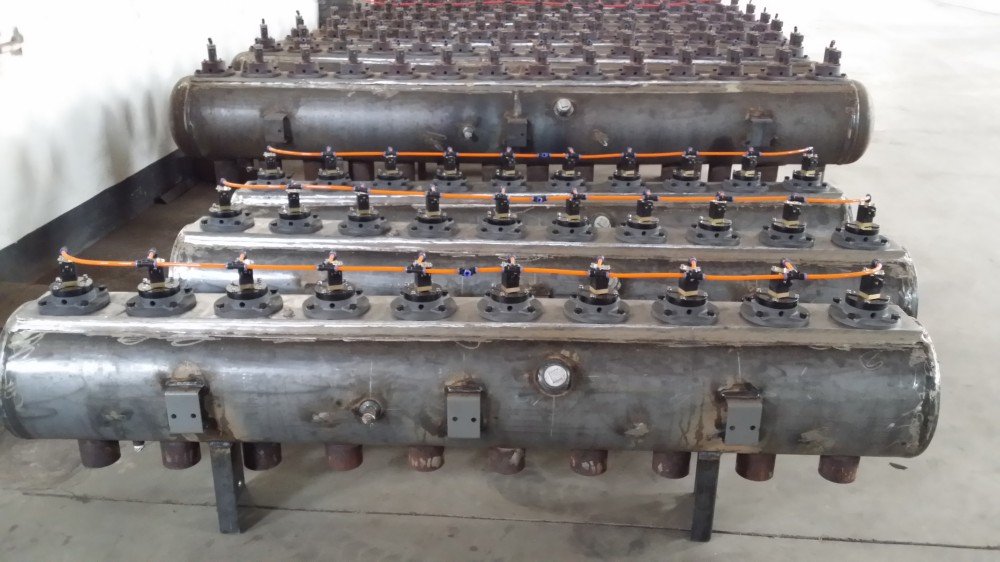

is primarily designed to be used in combination with circular pressure tank.

is easy to install and make service to.

has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).

Normal max operating temperature (compact pulse valve) 50°C.

OPTIPOW105 SPECIFICATION AND SPARE PARTS LIST

Piston type pulse valve V1585320

Piston type pulse valve V3630501

OPTIPOW 105 (24 VDC ) V1617803-0100

OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50 Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220V, 50 Hz) V1617803-0500

OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800

Coupling set V3592382-0000 -

Membrane V4549902-0100

O-Ring (Fluor rubber 64,5 x 3) 8003-5573

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422

O-Ring (114,5 x 3) 2136-1435

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3630527-0100

Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173 -

Rubber disc V3630530-0100

Rubber disc V3640661-0100

Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495 -

Solenoid valve (24 V DC) V3611471-0100

Solenoid valve (100 V, 60 Hz) V3611471-0201

Solenoid valve (110 V, 50 Hz) V3611471-0300

Solenoid valve (110 V, 60 Hz) V3611471-0200

Solenoid valve (120 V, 60 Hz) V3611471-0400

Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200

Solenoid valve (230 V, 50 Hz) V3611471-0500

As an Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse Valve,Pulse Jet Collector,Jet Pulse Filter,Pulse Jet Valve,Directly from China Manufacturer,We provide you with tailor-made air pollution control solutions focusing on reduced emissions and improved performance and efficiency to meet changing market conditions and comply with asset strategies. Our offering covers the entire flue gas line, ranging from particulate control, dry and wet scrubbers, to multi-pollutant equipment for industrial, waste-to-energy and power generation plants.

Starmachinechina air pollution control products meet the requirements for complying with the world’s strictest emissions legislation, the desire for low consumption of additives, the need for minimal residues, and the installation simplicity of a compact design. Quite often, our systems are delivered turnkey to ensure single-source accountability and efficiency.

Alstom Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.

The OPTIPOW Air Cleaning valve service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.We have a global sales network and service system of OPTIPOW air cleaning valve. There are more than 150 distributors and business cooperative partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, efficiency, coordination, innovation" is our corporate culture. "First class quality, reasonable price and timely service" is is our company's unremitting pursuit.

LET OUR INDUSTRY EXPERTS CREATE YOUR TAILORED SOLUTION

Working with Qingdao Star Machine Technology Co.,ltd. for dust collection needs is as easy as requesting a quote. Once in touch with our sales team, our dedicated representative will work with you from start to finish, gain a deep understanding of your needs, and provide the best solutions to the problems you face. Qingdao Star Machine Technology Co.,ltd. will not waste your time. We respect your position in the market and provide honest, up-front information that saves you time, cost, and peace of mind.

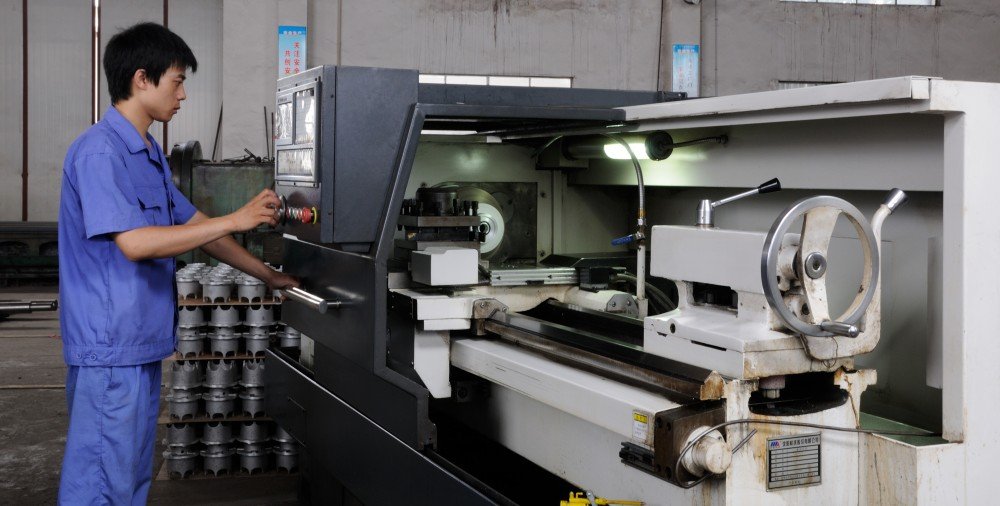

Advanced Optipow Valve Parts Processing Workshop

LET OUR INDUSTRY EXPERTS CREATE YOUR TAILORED SOLUTION

Working with Qingdao Star Machine Technology Co.,ltd. for dust collection needs is as easy as requesting a quote. Once in touch with our sales team, our dedicated representative will work with you from start to finish, gain a deep understanding of your needs, and provide the best solutions to the problems you face. Qingdao Star Machine Technology Co.,ltd. will not waste your time. We respect your position in the market and provide honest, up-front information that saves you time, cost, and peace of mind.

Qingdao Star Machine Technology Co.,Ltd. are here to make sure that you get the best experience possible while we provide solutions for your industrial dust collection needs. That’s what makes us the best dust collector manufacturer in the world. We actually care about your success. Whether you need dust collector filter bags, valves, or a whole new system, we have you covered. Contact us today to start a conversation.
