Optipow Bag Filter Membrane V4549902-0100

Min. Order: 1

Part No.: V4549902-0100

Model NO.:3"/4"Piston Plunger Pulse Valve Optipow 105/135

Usage: Drain, Dust Cleaning, Optipulse Fabric Filters Plunger Pulse Vanne OPTIPOW

Standard: DIN

Application: Industrial Usage

Use: Optipow105, Optipow135, Burkert, Danfoss

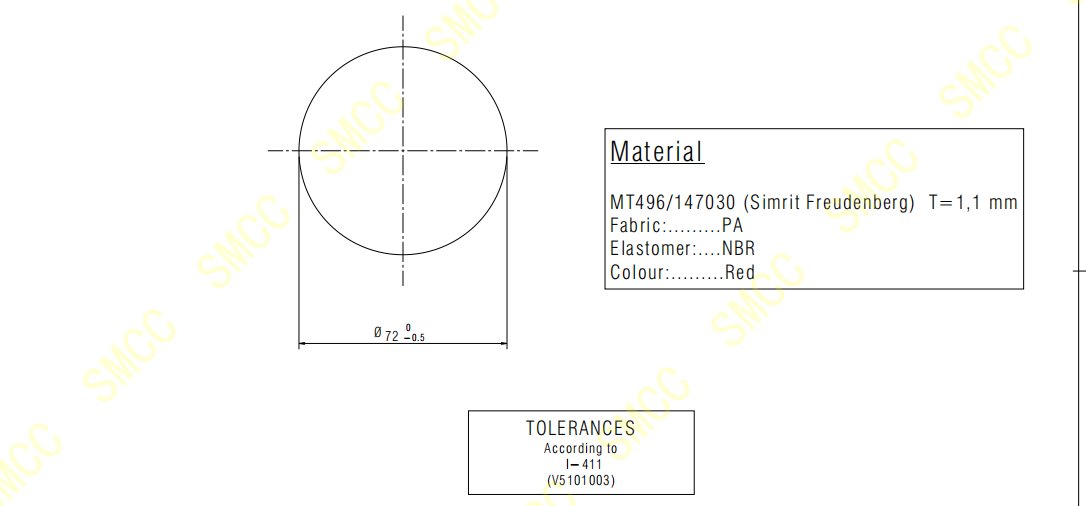

Specification: 72mm Diameter, 1.15mm Thickness

Basic Info

Design static pressure	15 bar (1500 kPa)	Design temperature	100 °C
Operating pressure	< 6 bar	Operating pressure variation	3 bar unlimited nos
Operation temperature	50 °C	Quality Assurance	100000 Times

Product Description

Optipow Plunger Membrane Valve, Dust Cleaning Industrial Usage, Widely Used in Thermal Power Station, Glass Manufacturing...,The service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal.

OPTIPOW VANNE SPECIFICATION LIST:

OPTIPOW 105 (24 VDC ) V1617803-0100

OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50 Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220V, 50 Hz) V1617803-0500

OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800

OPTIPOW 135 (24V) V1614718-0100

OPTIPOW 135 (100V, 50 Hz) V1614718-0301

OPTIPOW 135 (120V 60Hz) V1614718-0400

OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800

The 219 sets of advanced automatic production equipment provide guarantees for high product quality. The 167 engineers and technicians with senior professional titles can design and develop products to meet the exact demands of customers, and OEM customizations are also available with us. Our sound global service network can provide customers with timely after-sales technical services. We are not just a manufacturer and supplier, but also an industry consultant. We work pro-actively with you to offer expert advice and product recommendations in order to end up with a most cost effective product available for your specific application. The clients we serve worldwide range from end users to distributors and OEMs. Our OEM replacements can be substituted wherever necessary and suitable for both repair and new assemblies.
