OPTIPOW135 without solenoid V1614718-0800 Air Cleaning Valve

Min. Order: 1

Valve Structure: Pilot Membrane Structure

Delivery time: 5 working days for delivery after payment.

Payment Terms: L/C, T/T, D/P, Money Gram

Warranty Period: Two Years or 100000 Times

Warranty Mode: Replacement Rather than Repair

Origin: Qingdao China

Basic Info

Model NO.	OPTIPOW135	Valve Structure	Plunger Membrane Structure
Power Supply	DC Solenoid Valve	Usage	Drain, Dust Cleaning
Standard	DIN	Application	Industrial Usage
Used For	Dust Filter	Trademark	OPTIPOW
Specification	4"	Design static pressure	15 bar (1500 kPa)
Design temperature	-60-100 °C	Operating pressure	< 6 bar
Operating pressure variation	3 bar unlimited nos	Operation temperature	50 °C

Product Description

The compact pulse valve for the Optipulse fabric filters of different types.

is a result of many years of experiences within the fabric filter technology area.

is quick acting with high efficiency.

has small dimensions, the figure after the name stands fir the diameter of the plunger.

is primarily designed to be used in combination with circular pressure tank.

is easy to install and make service to.

has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).

Normal max operating temperature (compact pulse valve) 50°C.

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.

OPTIPOW SPECIFICATION AND SPARE PARTS LIST

Air Filter OPTIPOW135

OPTIPOW 135 (24V) V1614718-0100

OPTIPOW 135 (100V, 50 Hz) V1614718-0301

OPTIPOW 135 (120V 60Hz) V1614718-0400

OPTIPOW 135 (120V 60Hz UL-CERTIFIED) V1614718-0700

OPTIPOW 135 (without solenoid, revolving 90° C) V1614718-0800 -

Membrane V4549902-0100

O-Ring (Fluor rubber 64,5 x 3) 8003-5573

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422

O-Ring (114,5x3) 2136-1441

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3629022-0100

Round washer (SS3576-5-200HV FE/ZN25) 4903-2146 -

Rubber disc V3640660-0100

Solenoid valve (24 V DC ) V3611471-0100

Solenoid valve (100 V, 60 Hz) V3611471-0201

Solenoid valve (110 V, 50 Hz) V3611471-0300

Solenoid valve (110 V, 60 Hz) V3611471-0200

Solenoid valve (120 V, 60 Hz) V3611471-0400

Solenoid valve (120 V, 60 Hz-

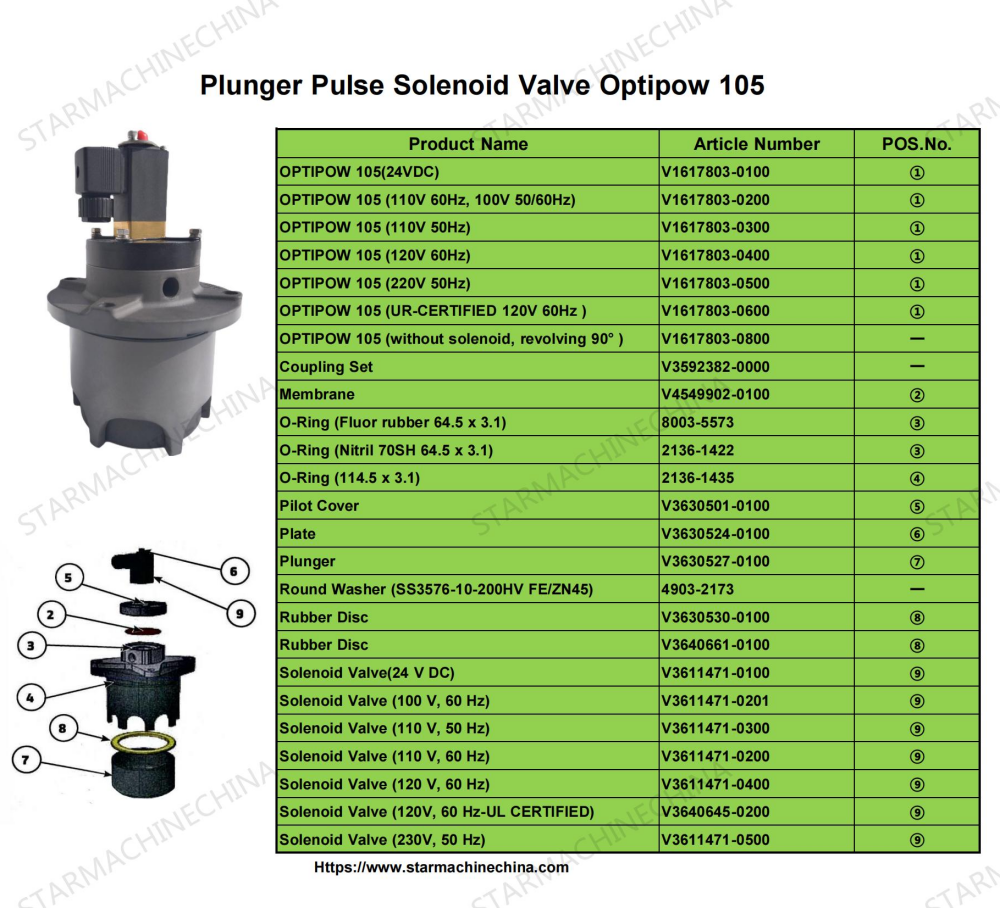

Plunger Pulse Solenoid Valve Optipow 105

WHY CHOOSE US

1. Reliable Quality Assurance System;

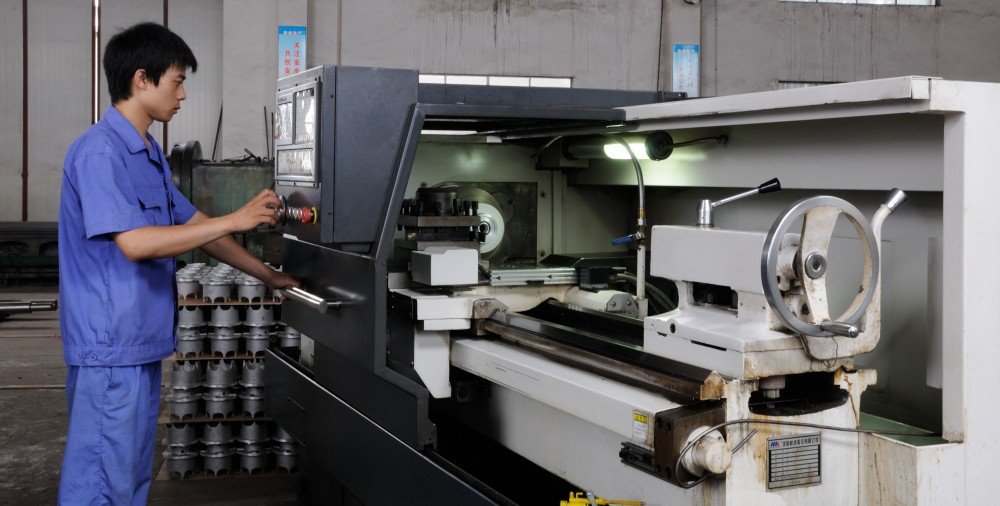

2. Cutting-Edge Computer-Controlled CNC Machines;

3. Bespoke Solutions from Highly Experienced Specialists;

4. Customization and OEM Available for Specific Application;

5. Extensive Inventory of Spare Parts and Accessories;

6. Well-Developed Worldwide Marketing Network;

7. Efficient After-Sale Service System

Pulse Jet Filter,Optipulse Fabric Filter,Jet Pulse valve,Pulse Jet Valve,Directly from China Manufacturer,- Qingdao Star Machine Technology Co.,Ltd.Our OPTIPOW Air Cleaning valve service life can reach 1,000,000 times. Low temperature resistance -60 ° C and high temperature 150 ° C. Widely used in thermal power plant air purification and dust removal, glass factory dust removal, laboratory dust removal, and other industrial dust removal. We have a sales system and after-sales service system all over the world. Our goal is to continuously improve quality and continuously reduce costs, till customer satisfaction.

We have a global sales network and service system of OPTIPOW air cleaning valve. There are more than 150 distributors and business cooperative partners in more than 30 countries, including Vietnam, Korea, Thailand, Bangladesh, Singapore, Philippines, Malaysia, Russia, Kazakhstan, Uzbekistan, Ukraine, Iran, Saudi Arabia, Chile, Brazil, Canada, the United States, Mexico, Poland and other countries. "Honesty, efficiency, coordination, innovation" is our corporate culture. "First class quality, reasonable price and timely service" is is our company's unremitting pursuit.
