The compact pulse valve for the Optipulse fabric filters of different types.

is a result of many years of experiences within the fabric filter technology area.

is quick acting with high efficiency.

has small dimensions, the figure after the name stands fir the diameter of the plunger.

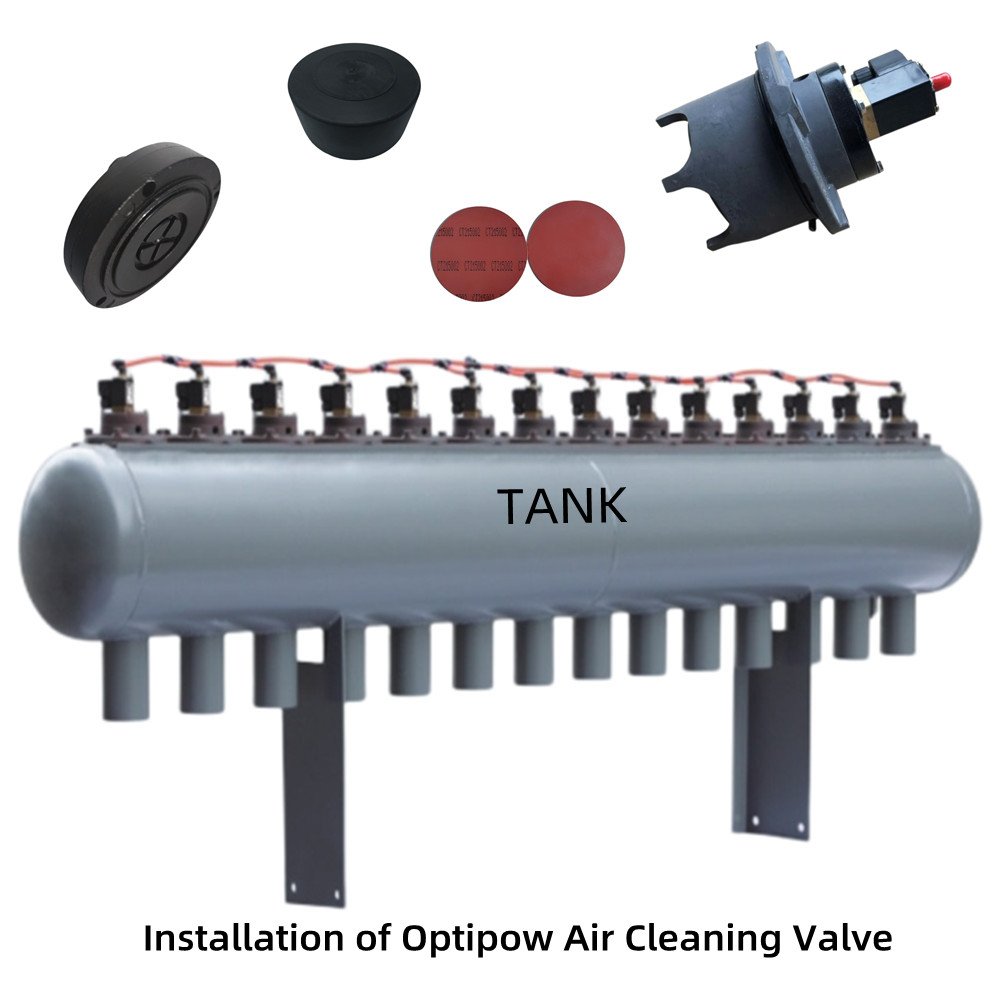

is primarily designed to be used in combination with circular pressure tank.

is easy to install and make service to.

has a very robust design, designed for normal use at air pressure up to 600kPa (6bar).

Normal max operating temperature (compact pulse valve) 50°C.

OPTIPOW SPECIFICATION AND SPARE PARTS LIST

Air Filter OPTIPOW105

Piston type pulse valve V1585320

Piston type pulse valve V3630501

OPTIPOW 105 (24 VDC ) V1617803-0100

OPTIPOW 105 (110V 60 Hz, 100V 50/60Hz) V1617803-0200

OPTIPOW 105 (110V, 50 Hz) V1617803-0300

OPTIPOW 105 (110V 50Hz, 120V 60Hz) V1617803-0400

OPTIPOW 105 (220V, 50 Hz) V1617803-0500

OPTIPOW 105 (UR-CERTIFIED 120V,60HZ) V1617803-0600

OPTIPOW 105 (without solenoid, revolving 90° C) V1617803-0800

Coupling set V3592382-0000

Membrane V4549902-0100

O-Ring (Fluor rubber 64,5 x 3) 8003-5573

O-Ring (Nitril 70SH 64,5 x 3) 2136-1422

O-Ring (114,5 x 3) 2136-1435

Pilot cover V3630501-0100

Plate V3630524-0100

Plunger V3630527-0100

Round washer (SS3576-10-200HV FE/ZN45 Erection details) 4903-2173

Rubber disc V3630530-0100

Rubber disc V3640661-0100

Screw (ISO4762-M10x30-8.8 ZN8C, Erection details) 2034-2495

Solenoid valve (24 V DC) V3611471-0100

Solenoid valve (100 V, 60 Hz) V3611471-0201

Solenoid valve (110 V, 50 Hz) V3611471-0300

Solenoid valve (110 V, 60 Hz) V3611471-0200

Solenoid valve (120 V, 60 Hz) V3611471-0400

Solenoid valve (120 V, 60 Hz - UL certified) V3640645-0200

Solenoid valve (230 V, 50 Hz) V3611471-0500
