Material: Pearlitic Malleable Cast Iron
69.35 mm Pitch Conveyor Chains for LPG Bottling Plants.
This Chain comes with lot of variants as suitable for plants, consultants and maintenance contracts.
69.35 mm Pitch Conveyor chain is also know as F801 Fabricated Version of Malleable Chain.
This Chain also is used in Barrel Manufacturing Industry and Processing industry and Textile machinery.
Chain No. | Pitch | Dimensions | Average Ultimate Strength | ||||
P | A | B | C | D | E | ||

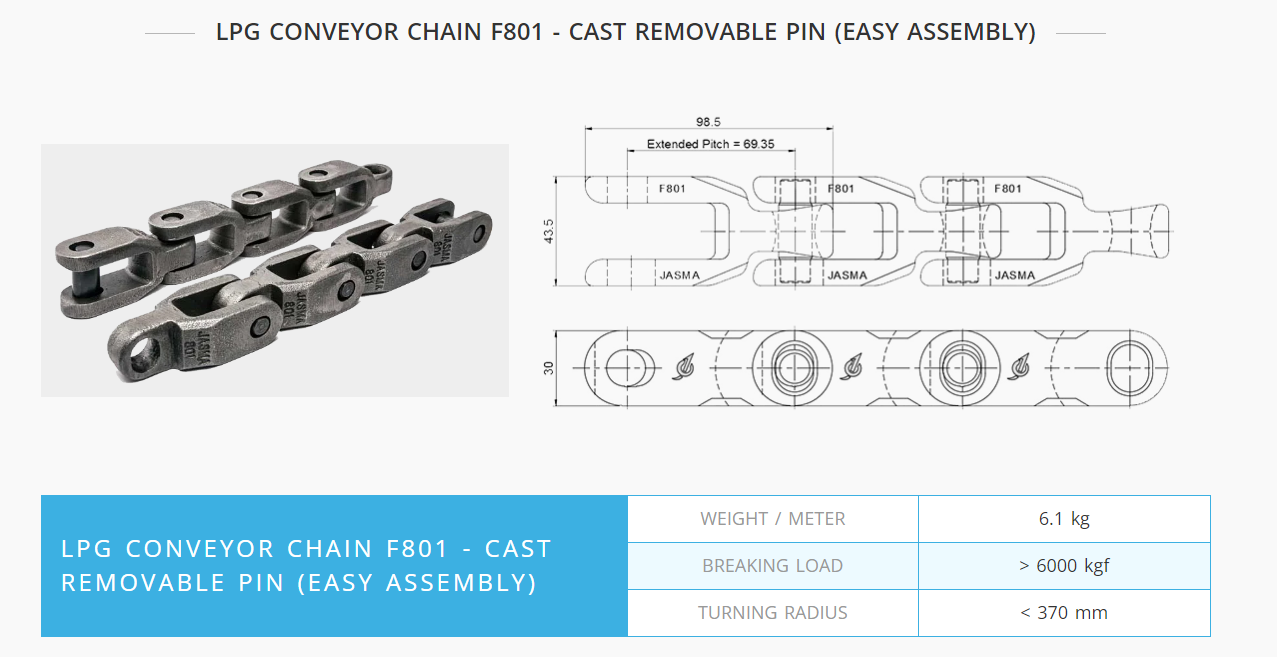

F801 Chain | 69.35mm | 30.00mm | 22.5mm | 21.00mm | 13.6mm | 43.5mm | 75KN |
F801 conveyor chain is a heavy-duty cast steel chain designed specifically for high-strength material handling applications. It is widely used in LPG cylinder filling plants, warehouses, and distribution centers for the reliable transportation of LPG cylinders. Its sturdy structure ensures stable performance under high-impact and continuous operation conditions.
Cast Alloy Steel Construction
Each chain link is manufactured from high-strength cast alloy steel, providing:
High resistance to cracking
Uniform material structure
Effective impact absorption
High Load Capacity
With a typical working load of 2,800–3,500 kgf, depending on material grade and manufacturing process, the F801 chain is suitable for transporting full LPG cylinders and handling repetitive impact loads during operation.
Designed for Demanding Operating Conditions
The F801 chain is suitable for applications involving:
Dusty environments
Humid or oily conditions
Frequent start-stop conveyor operations
High Impact Resistance
The cast structure effectively absorbs impact loads generated during cylinder loading and conveying, helping to reduce:
Link cracking
Pin deformation
Excessive pitch elongation
Excellent Wear Resistance
Designed for continuous-duty applications, the chain offers reliable resistance to:
Sliding wear
Surface friction
Repeated contact with steel cylinders
This contributes to extended service life and reduced maintenance requirements.
Compatibility with Standard Conveyor Systems
The F801 chain matches most LPG cylinder production line specifications, offering:
Easy replacement in existing systems
Compatibility with standard sprockets
Convenient spare parts management
To maximize service life and maintain reliable operation:
Use an appropriate lubricant: Use a high-viscosity, anti-wear lubricant suitable for heavy-duty conveyor chains.
Monitor chain pitch elongation: Replace the chain when the elongation reaches 1.8%–2%.
Regularly check the wear of pins and bushings: Excessive wear may indicate insufficient lubrication or contamination.
Check the alignment of guide rails and sprockets: Minimize uneven wear to the greatest extent possible.
Q: Why choose us?
A. We are a manufacturer; we have manufactured chains and sprockets for over 20 years.
B. Reliable Quality Assurance System;
C. Cutting-Edge Computer-Controlled CNC Machines;
D. Bespoke Solutions from Highly Experienced Specialists;
E. Customization and OEM Available for Specific Application;
F. Extensive Inventory of Spare Parts and Accessories;
G. Well-Developed Worldwide Marketing Network;
H. Efficient After-Sale Service System
Q: What is your payment term?
A: 30% TT deposit, 70% balance T/T before shipping.
Q: Can we print our logo on your products?
A: Yes, we offer OEM/ODM service, and we support the customized logo, size, package, etc.
Q: Can you make chains according to my CAD drawings?
A: Yes. In addition to standard chains, we produce non-standard and custom-designed products to meet specific technical requirements. In reality, a sizable portion of our production capacity is assigned to make non-standard products.
Q: What is your main market?
A: North America, South America, Eastern Europe, Western Europe, Southeast Asia, Africa, Oceania, the Middle East, Eastern Asia.
Q: Can I get samples from your factory?
A: Yes, Samples can be provided.
Q: If products have a quality problem, how would you deal with it?
A: We will be responsible for all the quality problems.
